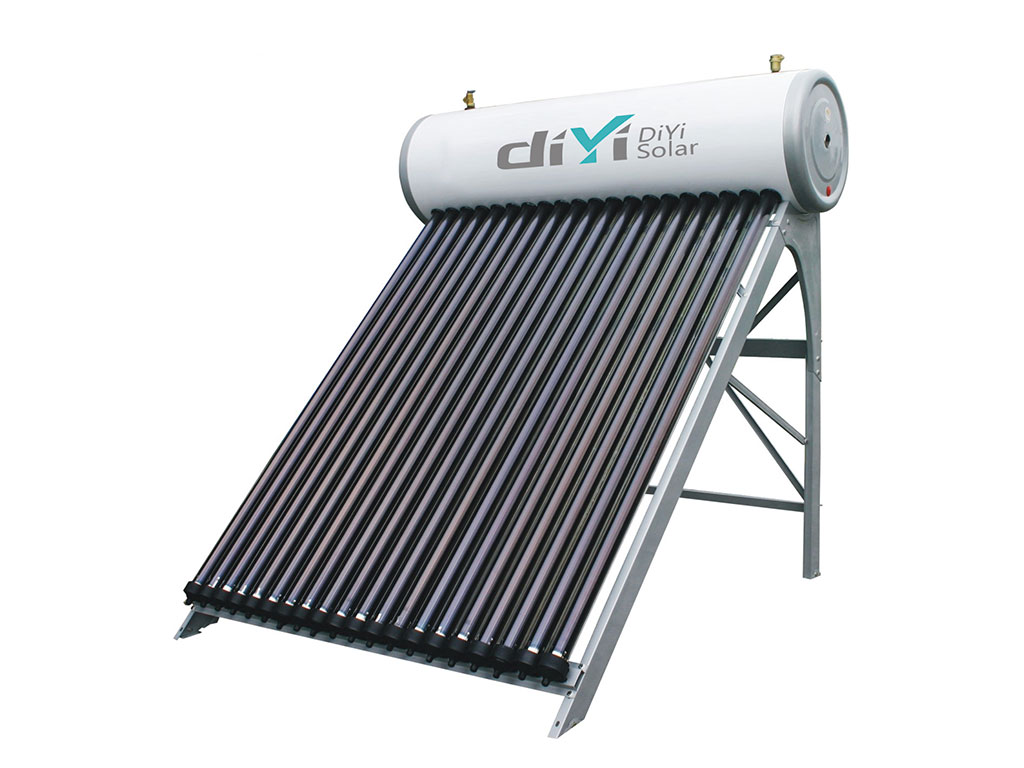

Compact high pressure solar water heater

Characteristics： This model works with high pressureso it can be connected with city water directly. With the heat pipe in the vacuum tubetherefore no water in the tubeeach tube can work aloneso the solar colletcor can work even one tube is broken. Highly efficient absorber of high performance with daily average efficiency over 50% Start up quicklythe water is heated rapidly by heat pipe which will transfer the heat energy into the tank Withstand pressure of 6 barmore comfortable to use Simple structureeasy to assembly and install Can be used all year even in the cold climate area Long service lifecan be use over 15 years Technical Parameters: Inner tank: SUS 304-2B/1.2mmOuter tank: Galvanized steel/0.41mm SUS304-2B/0.41mmInsulation: high density polyurethane foam 50mmVacuum tube: 47*1500mm/58*1800mm SS-CU-AIN/ALN or AL-N-AL coatingBracket: Galvanized steel 1.5mm/SUS 201 1.2mm20/25/38/45/50 degreeAccessories: UV stabilized high temperature siliconCapacity: 210L 240L 300L 360L（according to customers’ requirement） Parameter Table-1 ParameterData Place of original China Model Number DIYI-IP01 Price Terms FOBC&FCIF Brand Name DIYI&OEM Payment Terms T/TL/C Minimum order 1Set Supply ability 2000set/month Delivery Time Two weeks DIYI-IP01-10 ParameterData Area(M2) 1.224 Vacuum tube Φ(mm) 58 Vacuum tube Length(mm) 1800 Vacuum tube Qty(pcs 10 Volume(L) 100 Gross Weight (KG) 53 20GP/40GP/40HQ Loading Qty(sets) 84/173/203 DIYI-IP01-15 ParameterData Area(M2) 1.904 Vacuum tube Φ(mm) 58 Vacuum tube Length(mm) 1800 Vacuum tube Qty(pcs) 15 Volume(L) 150 Gross Weight (KG) 73 20GP/40GP/40HQ Loading Qty(sets) 61/116/142 DIYI-IP01-20 ParameterData Area(M2) 2.584 Vacuum tube Φ(mm) 58 Vacuum tube Length(mm) 1800 Vacuum tube Qty(pcs) 20 Volume(L) 200 Gross Weight (KG) 90 20GP/40GP/40HQ Loading Qty(sets) 48/84/112 DIYI-IP01-25 ParameterData Area(M2) 3.264 Vacuum tube Φ(mm) 58 Vacuum tube Length(mm) 1800 Vacuum tube Qty(pcs) 25 Volume(L) 250 Gross Weight (KG) 118 20GP/40GP/40HQ Loading Qty(sets) 40/77/92 DIYI-IP01-30 ParameterData Area(M2) 3.944 Vacuum tube Φ(mm) 58 Vacuum tube Length(mm) 1800 Vacuum tube Qty(pcs) 30 Volume(L) 300 Gross Weight (KG) 136 20GP/40GP/40HQ Loading Qty(sets) 34/68/82 Remark Inner tank and Outer tank diameter(mm):360/460 Vent connection(inch):1/2 Electrical heating connection(mm):47 Water connection(inch):1/2 or 3/4

Spec
